Material:
Made from high-quality heat-resistant rubber materials such as silicone, EPDM, or Viton®, which offer excellent thermal stability and elasticity.
Applications:
Ideal for use in automotive engines, industrial machinery, power equipment, and HVAC systems, where exposure to high temperatures and pressure is common.
Working Conditions:
Temperature Range: Typically -40°C to +250°C (material dependent)
Features: Heat resistance, compression resistance, oil and chemical tolerance, and long service life
Seal Type: Available in custom shapes and sizes for flange, pipe, cover, or engine sealing
E-mail:info@rubbersealpro.com
WhatsApp:+86 188 5323 2260
| Raw material | Nature rubber/ NBR/ EPDM/ Silicone rubber/ Foam rubber |
| Quality assurance | ISO 9001 |
| Customize different performance | Inflaming retarding/ Insulation/ Anti UV/ Anti-corrosion/ Grease proofing/ Wear-resisting/ Anti-age |
| Usage temperature range | -60ºC to 230ºC |
| Shore A Hardness | 20° to 85° |
| Various applications | Static & Dynamic Sealing Auxiliaries Lip Seals (Rotary Shaft Seals) Bellows Seals (Flexible Compensation Components) Gaskets & Bushings Special Application Rubber Seals |
| Packing | Available packaging: boxes, display cards, printed materials, trays, wooden crates, or custom requests. |
| Production lead time | 1-4 weeks |
| Property | Typical Applications | Rubber Material |
| Oil Resistance | Hydraulic systems, fuel pump seals | NBR |
| High-Temp/Chemical Resistance | Chemical reactors, high-temp oil pumps | FKM, FFKM |
| Low-Temp/Weather Resistance | Cryogenic pumps, outdoor equipment | Silicone, EPDM |
| High Wear Resistance | Slurry pumps with particulate media | PU |
| Food/Medical Safety | Food filling machines, medical sterilization equipment | Medical-grade Silicone, EPDM |
Lip Seals (Rotary Shaft Seals)
Application: Installed between rotating shafts and cavities for dynamic sealing, preventing lubricant leakage or ingress of dust/water.
Rubber Products: Lip seals (with or without metal frames).
Materials: NBR (general oil resistance), PU (high wear resistance), FKM (fuel/high-temperature resistance).
Working Conditions: Used in motors, gearboxes, pumps, etc., with shaft speed ≤5,000 rpm, pressure ≤1 MPa, temperature -30°C to 150°C.
Bellows Seals (Flexible Compensation Components)
Application: Act as elastic compensation mechanisms in mechanical seals to adjust for shaft axial movement or eccentricity, ensuring sealing surface contact.
Rubber Products: Rubber bellows (molded or hydraulically formed).
Materials: Silicone (low-temperature/weather resistance), EPDM (water/ozone resistance), FKM (chemical resistance).
Working Conditions: Suitable for cryogenic pumps (e.g., LNG pumps, -196°C), chemical agitators (acid/alkali resistance), with displacement compensation ±5 mm and pressure ≤2 MPa.

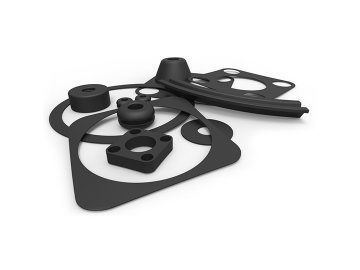

Gaskets & Bushings
Application: Static sealing for end covers and flange joints in mechanical seals, or as auxiliary wear-resistant bushings.
Rubber Products: Flat gaskets, corrugated gaskets, wear-resistant bushings.
Materials: NBR (general sealing), PTFE-coated rubber (strong chemical resistance), EPDM (water/steam resistance).
Special Application Rubber Seals
High-Pressure Conditions: FFKM seals for ultra-high pressure (>100 MPa) and strong corrosion (e.g., concentrated hydrochloric acid, liquid oxygen), used in oil drilling mechanical seals.
Food & Pharmaceutical Grade: Medical-grade silicone seals, non-toxic and steam-sterilizable (135°C), for mechanical seals in pharmaceutical reactors.
Aviation-Grade: Radiation-resistant silicone seals for aircraft engines, enduring high temperatures (260°C) and speeds (>10,000 rpm), compliant with MIL-S-8802.
Core Advantages & Material Selection
