​EPDM Foam Rubber Strip – Selection Guide for OEM/OAM Manufacturers and Industrial Buyers

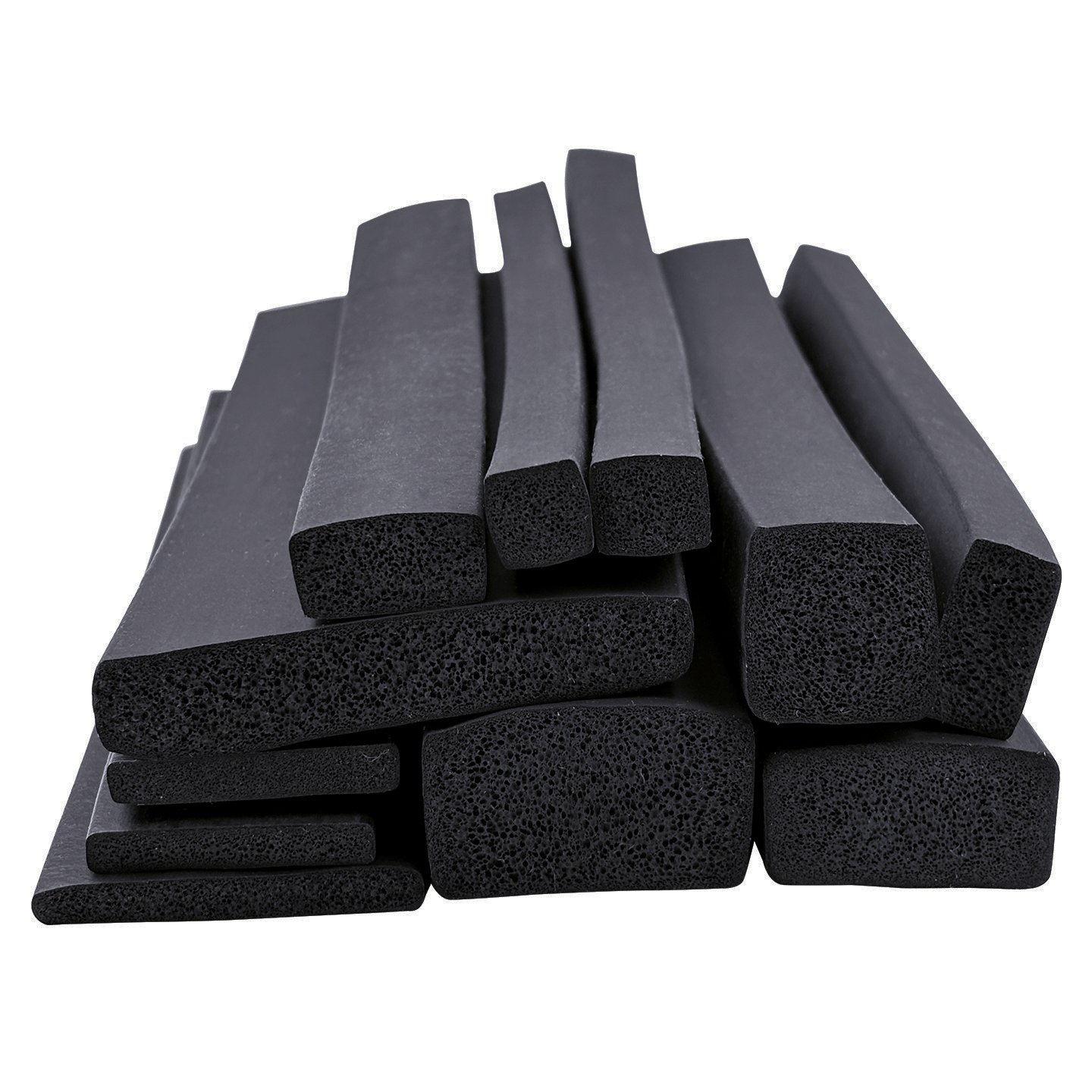

EPDM foam rubber strip is a highly elastic, sponge-like sealing material made from ethylene propylene diene monomer (EPDM) rubber. It features a uniform cell structure produced via closed-cell foaming technology, combining flexible cushioning and high-efficiency sealing properties. As a cost-effective sealing solution for outdoor and general industrial applications, it is often supplied with self-adhesive backing for easy installation.

Product Structure & Core Features

Material Composition

Manufactured with EPDM synthetic rubber as the base material, it offers outstanding weather resistance, anti-aging performance and chemical stability. With low density and high elasticity, it is suitable for long-term outdoor use and complex working conditions.

Structural Advantages

Primarily designed with a closed-cell foam structure, in which cells are independent and non-interconnected, effectively blocking the penetration of moisture, dust and air. It features low compression set and rapid rebound after compression, maintaining stable sealing shape and performance over the long term.

Product Performance & Advantages

Excellent Weather Resistance & Anti-Aging

Highly resistant to ozone, UV radiation, rain and snow. It does not crack or harden during long-term outdoor service, with a service life far exceeding that of ordinary rubber strips.

Stable Performance Over a Wide Temperature Range

Operates reliably at temperatures from -40°C to +150°C, with short-term heat resistance up to 180°C. Its elasticity and sealing performance remain stable in both high and low temperature environments.

Superior Waterproofing, Moisture Resistance & Chemical Resistance

Closed-cell structure provides excellent waterproofing and anti-seepage. It withstands weak acids and alkalis, detergents, water mist and some oils, adapting to humid and mildly corrosive environments.

High Elasticity, Cushioning & Noise Reduction

Flexible and compressible, it conforms to irregular gaps while providing shock absorption and sound insulation, enhancing the performance of equipment and buildings.

Good Electrical Insulation & Process Compatibility

Delivers favorable insulation properties. It can be die-cut, cut to length or custom-shaped into special profiles, supporting automated assembly and mass OEM production.

Eco-Friendly, Non-Toxic & Cost-Effective

Odorless and environmentally compliant with RoHS and other standards. Lower in cost compared to silicone materials, making it an optimal choice for general sealing applications.

Typical Application Areas

EPDM foam rubber strips are ideal for various applications requiring weather resistance, waterproofing and noise reduction:

Building Doors, Windows & Curtain Walls: Sealing, sound insulation, windproofing and waterproofing for doors, windows, glass curtain walls and aluminum alloy profiles;

Automotive & Rail Transit: Sealing and shock absorption for vehicle doors, windows, trunks, engine compartments and rail transit carriages;

Electrical & Electronic Cabinets: Dustproof and waterproof sealing for distribution boxes, junction boxes, outdoor luminaires and communication cabinets;

HVAC Equipment: Sealing and shock absorption for connections in air conditioning ducts, fan coil units and fresh air systems;

Home Appliances & Electromechanical Products: Sealing and cushioning for refrigerators, washing machines, water heaters and mechanical equipment;

Marine & Outdoor Facilities: Weather-resistant sealing for yacht hatches, outdoor enclosures and photovoltaic brackets.

Product Forms & Installation Methods

Standard Forms: Mainly supplied in rolls and strips, with rectangular, D-shaped, round, oval, U-shaped and other profiles;

Self-Adhesive Backing: Coated on one side with high-tack acrylic or rubber adhesive and protected by release paper, enabling tool-free, fast bonding;

Custom Processing: Custom die-cut special-shaped gaskets, composite inserts and colored products available per drawings to meet specialized equipment requirements.

Comparison with Common Sealing Materials

vs. PVC Foam: Better weather resistance, no brittleness at low temperatures, more suitable for outdoor use;

vs. Silicone Foam: Lower cost, excellent waterproofing and weather resistance, slightly inferior high-temperature performance;

vs. CR Foam: Superior ozone and UV resistance, less prone to aging during long-term use.

Summary

EPDM foam rubber strip is a highly weather-resistant and cost-effective general-purpose sealing material. With exceptional anti-aging, waterproofing, noise reduction and wide-temperature stability, it has become the mainstream sealing solution in construction, automotive, electrical, HVAC and other industries. Its easy processing, simple installation and long service durability satisfy both OEM mass production needs and industrial maintenance & engineering installation scenarios, delivering significant overall cost advantages.
